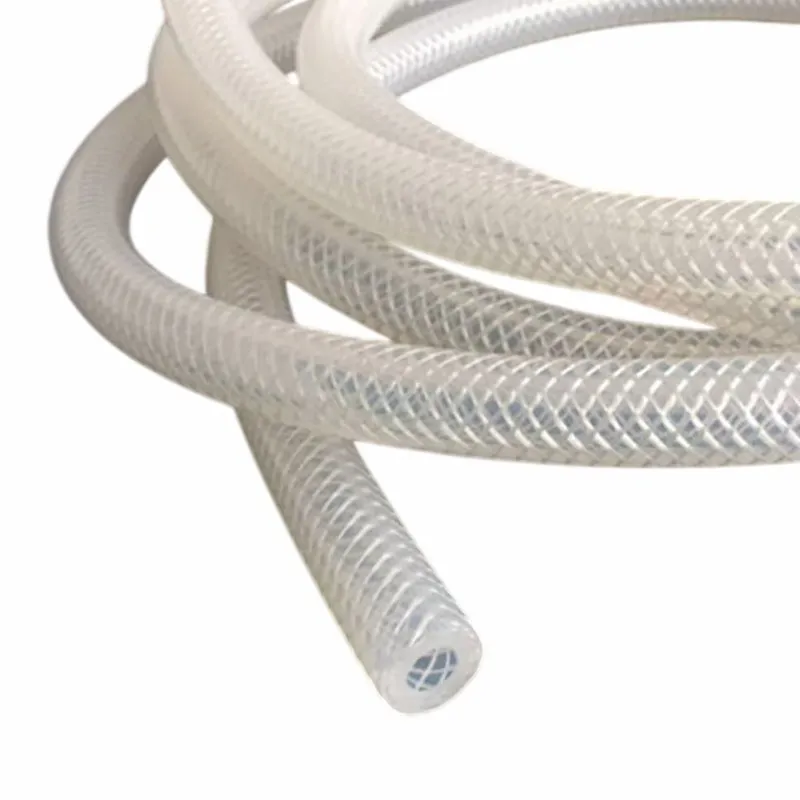

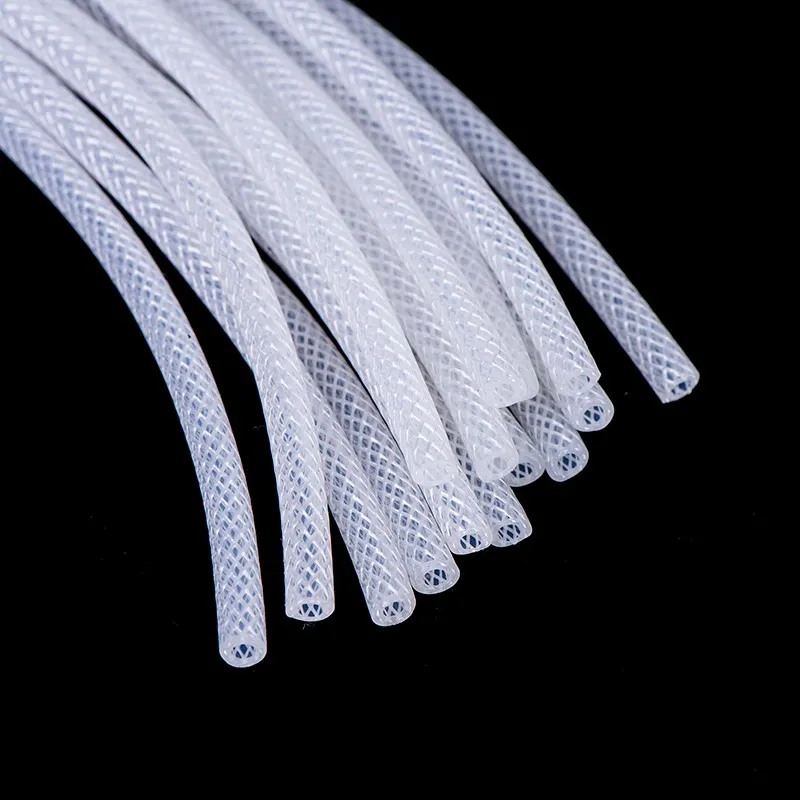

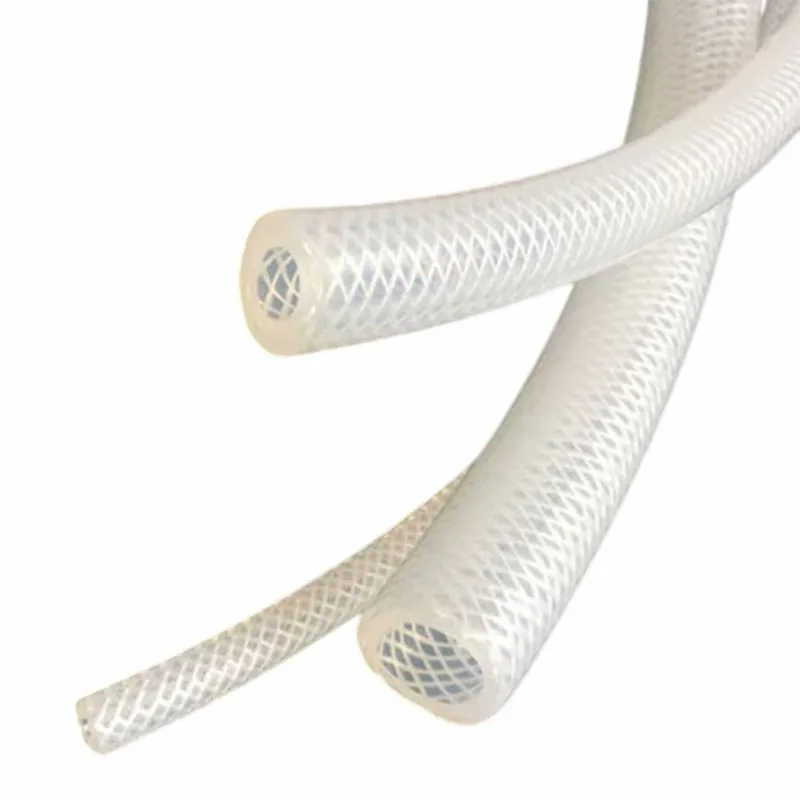

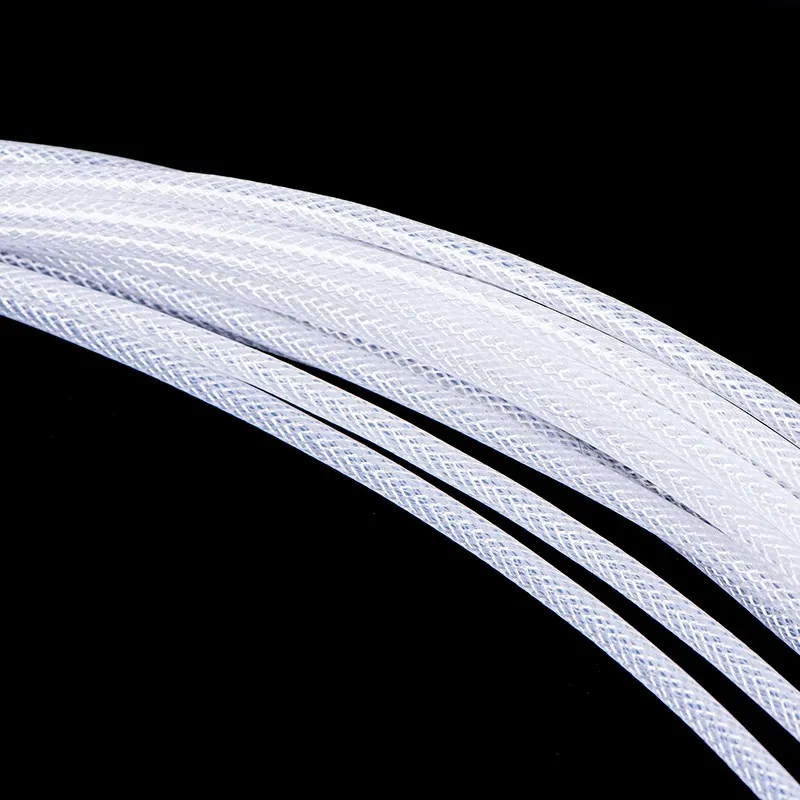

This platinum-coated braided hose is made of silicone with an inner polyester fiber braided layer, offering advantages such as good chemical stability, aging resistance, high transparency, and excellent flexibility. It is widely used in high- and low-temperature food, dairy, edible oil, cosmetic, chemical, pharmaceutical, and bioengineering fields for conveying liquids or semi-liquids such as milk and juice; it can also be used to connect oxygen generators and food processing machinery; connect alcoholic beverages; and connect medical equipment.
Platinum vulcanized braided hose technical parameters
|
INNER DIA |
OUTER DIA |
BENDRADIUS |
WORK PRESSURE |
BUSRST PRESSURE |
STANDARD LENGTH |
|||||
|
(mm) |
(inch) |
(mm) |
(inch) |
(mm) |
(inch) |
Bar |
psi |
Bar |
psi |
M |
|
3.18 |
1/8 |
9.30 |
0.354 |
35 |
1/2 |
15.0 |
217.5 |
45 |
652.5 |
100 |
|
4.00 |
1/6 |
10.00 |
3.94 |
40 |
3/4 |
12.0 |
174 |
36 |
522 |
100 |
|
5.00 |
3/16 |
11.00 |
0.433 |
50 |
1 |
10.0 |
145 |
30.0 |
435 |
100 |
|
6.35 |
1/4 |
13.20 |
0.519 |
55 |
1-1/2 |
9.3 |
134.85 |
27.9 |
404.55 |
100 |
|
7.93 |
5/16 |
15.00 |
0.591 |
58 |
1-3/4 |
7.7 |
111.65 |
23.1 |
334.95 |
100 |
|
9.52 |
3/8 |
16.60 |
0.654 |
60 |
2-1/4 |
7.0 |
101.5 |
21 |
304.5 |
100 |
|
12.70 |
1/2 |
20.30 |
0.799 |
70 |
2-3/4 |
6.0 |
87 |
18 |
261 |
100 |
|
15.87 |
5/8 |
24.50 |
0.965 |
85 |
3-1/4 |
5.0 |
72.5 |
15 |
217.5 |
50 |
|
19.05 |
3/4 |
27.90 |
1.099 |
95 |
3-3/4 |
4.0 |
58 |
12 |
174 |
50 |
|
22.20 |
3/4 |
31.30 |
1.233 |
145 |
5-3/4 |
3.6 |
52.2 |
10.8 |
156.6 |
50 |
|
25.40 |
1 |
34.50 |
1.358 |
157 |
6-1/4 |
3.0 |
43.5 |
9.0 |
130.5 |
25 |
|
31.75 |
1-1/4 |
40.80 |
1.606 |
204 |
8 |
2.3 |
33.35 |
6.9 |
100.05 |
25 |
Product Advantages
NO.1
Resistant to high and low temperatures. Operating temperature range: -40°C to +220°C. Soft and flexible throughout the year.
NO.2
Food-grade material, pure silicone, odorless, tasteless, completely non-toxic, and free of any plasticizers and additives. Complies with food safety requirements (FDA/REACH/ROHS).
NO.3
Good transparency: The tube is usually semi-transparent, allowing observation of fluid movement. We can also customize colors according to customer requirements.
NO.4
Excellent flexibility; smooth and clean inner wall, easy to clean and non-stick to water; suitable for SIP and CIP cleaning. Excellent pressure resistance.
Reasons to Choose Us
Strict Quality Assurance System:
We possess internationally advanced automated production lines, are equipped with precision testing laboratories, and implement international quality management systems such as ISO13485. We are also FDA/USP VI/ISO9001 certified.
Comprehensive Application Solutions:
Covering medical, food, pharmaceutical, hydrogen energy, and industrial fields. We support customized delivery for special media (corrosive/high purity). We also offer hoses with special functions such as antibacterial/conductive properties.
Flexible Customization Capabilities:
Supporting in-depth OEM/ODM cooperation. Customizable sizes, colors, and functional parameters. Fast sampling (3-5 working days). Professional technical support and after-sales guarantee.
Worry-Free Experience:
We provide one-on-one customer service, with customer service managers analyzing and resolving your issues, saving you time and improving efficiency.
FAQ
Q: 1.Is this hose safe for conveying food, beverages, or pharmaceuticals?
A: Absolutely. It is non-toxic, odorless, BPA-free, and phthalate-free, meeting global hygiene standards, and is therefore safe for transferring consumable liquids, active pharmaceutical ingredients (APIs), and biological culture media.
Q: 2.What is platinum-cured braided silicone tubing? What are its advantages?
A: Platinum-cured braided silicone tubing is a high-purity silicone tubing with an outer polyester braided layer, offering excellent pressure resistance and durability. The platinum curing process ensures ultra-low leachate, excellent transparency, and good biocompatibility, making it ideal for hygienic fluid delivery in the pharmaceutical, biotechnology, and food industries.
Q:3.Can we get some samples? Any charges?
A:Yes, free existing labels, you need to pay shipping cost.
Q:4. How can we get a quote?
A:Contact us with specification: such as material, design, size, shape, color, quantity, surface finishing, etc.
Q:5. Can you help with the design?
A:Yes, Simply design free, special design need to pay.
