Product Description

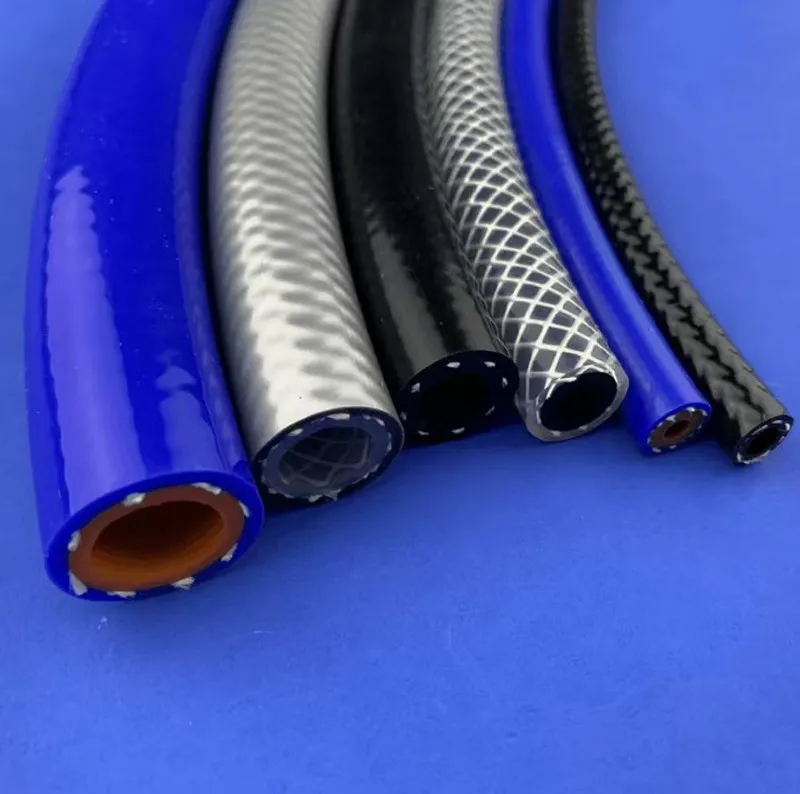

A reinforcing layer is directly braided onto the outer wall of the silicone hose. This method is low-cost, flexible, and enhances pressure resistance. The braided layer acts like a "skeleton," dispersing pressure and preventing the silicone layer from expanding or rupturing due to internal pressure.
Technical parameters of red and blue silicone tubing
|
INNER DIA |
OUTER DIA |
BENDRADIUS |
WORK PRESSURE |
BUSRST PRESSURE |
STANDARD LENGTH |
|||||
|
(mm) |
(inch) |
(mm) |
(inch) |
(mm) |
(inch) |
Bar |
psi |
Bar |
psi |
M |
|
3.18 |
1/8 |
9.30 |
0.354 |
35 |
1/2 |
15.0 |
217.5 |
45 |
652.5 |
100 |
|
4.00 |
1/6 |
10.00 |
3.94 |
40 |
3/4 |
12.0 |
174 |
36 |
522 |
100 |
|
5.00 |
3/16 |
11.00 |
0.433 |
50 |
1 |
10.0 |
145 |
30.0 |
435 |
100 |
|
6.35 |
1/4 |
13.20 |
0.519 |
55 |
1-1/2 |
9.3 |
134.85 |
27.9 |
404.55 |
100 |
|
7.93 |
5/16 |
15.00 |
0.591 |
58 |
1-3/4 |
7.7 |
111.65 |
23.1 |
334.95 |
100 |
|
9.52 |
3/8 |
16.60 |
0.654 |
60 |
2-1/4 |
7.0 |
101.5 |
21 |
304.5 |
100 |
|
12.70 |
1/2 |
20.30 |
0.799 |
70 |
2-3/4 |
6.0 |
87 |
18 |
261 |
100 |
|
15.87 |
5/8 |
24.50 |
0.965 |
85 |
3-1/4 |
5.0 |
72.5 |
15 |
217.5 |
50 |
|
19.05 |
3/4 |
27.90 |
1.099 |
95 |
3-3/4 |
4.0 |
58 |
12 |
174 |
50 |
|
22.20 |
3/4 |
31.30 |
1.233 |
145 |
5-3/4 |
3.6 |
52.2 |
10.8 |
156.6 |
50 |
|
25.40 |
1 |
34.50 |
1.358 |
157 |
6-1/4 |
3.0 |
43.5 |
9.0 |
130.5 |
25 |
|
31.75 |
1-1/4 |
40.80 |
1.606 |
204 |
8 |
2.3 |
33.35 |
6.9 |
100.05 |
25 |
Product Name: Red and blue silicone tubing
Product Material: Imported food-grade silicone, polyester fiber braided mesh (material customizable)

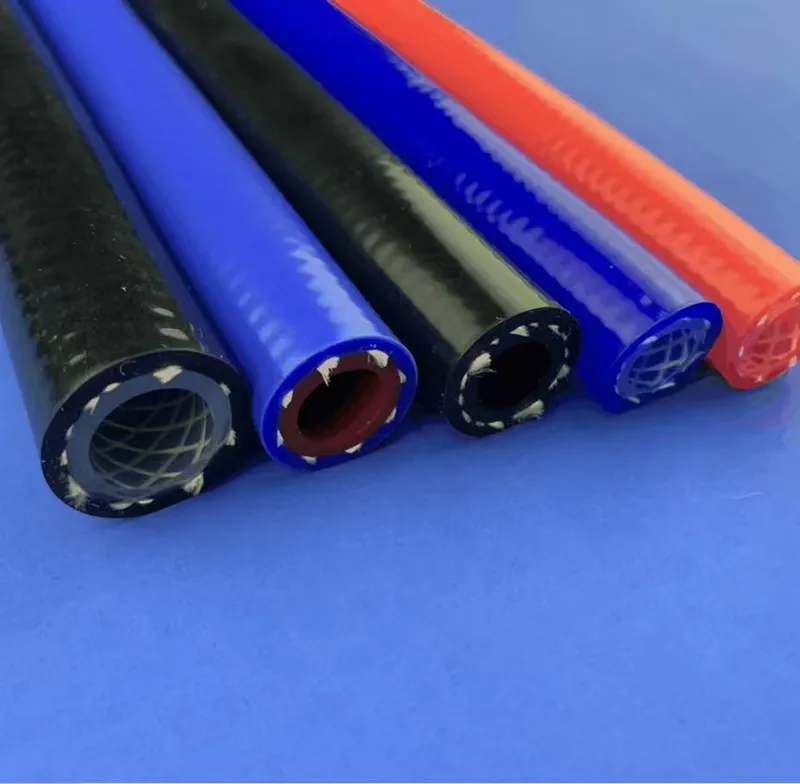

Structure: Inner tube is transparent silicone, outer tube is red and blue dual-color silicone, with a fiber braided mesh sandwiched in between.
Heat Resistance: -40℃ to 220℃
Application: Used for low-pressure liquid transportation, such as milk and drinking water. Suitable for SIP and CIP cleaning. These hoses are typically translucent for easy observation of fluid flow. We can also customize the outer wall color according to customer requirements.
Meaning of Red and Blue Silicone Hose Markings:
Primarily used to distinguish the direction of media flow (e.g., water inlet/outlet, oil supply/return), reducing the risk of incorrect connections, especially effective in complex piping systems.
Meaning of the red and blue silicone tubingmarkings
Primarily used to distinguish the direction of media flow (e.g., water inlet/outlet, oil supply/return), reducing the risk of incorrect connections, especially effective in complex piping systems.
Meaning of red and blue braided silicone hose markings:
Primarily used to distinguish the direction of media flow (e.g., water inlet/outlet, oil supply/return), reducing the risk of incorrect connections, especially effective in complex piping systems.
