Product Description

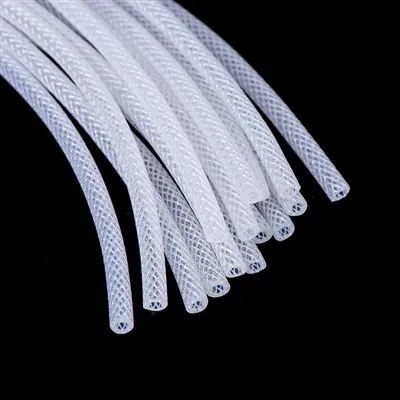

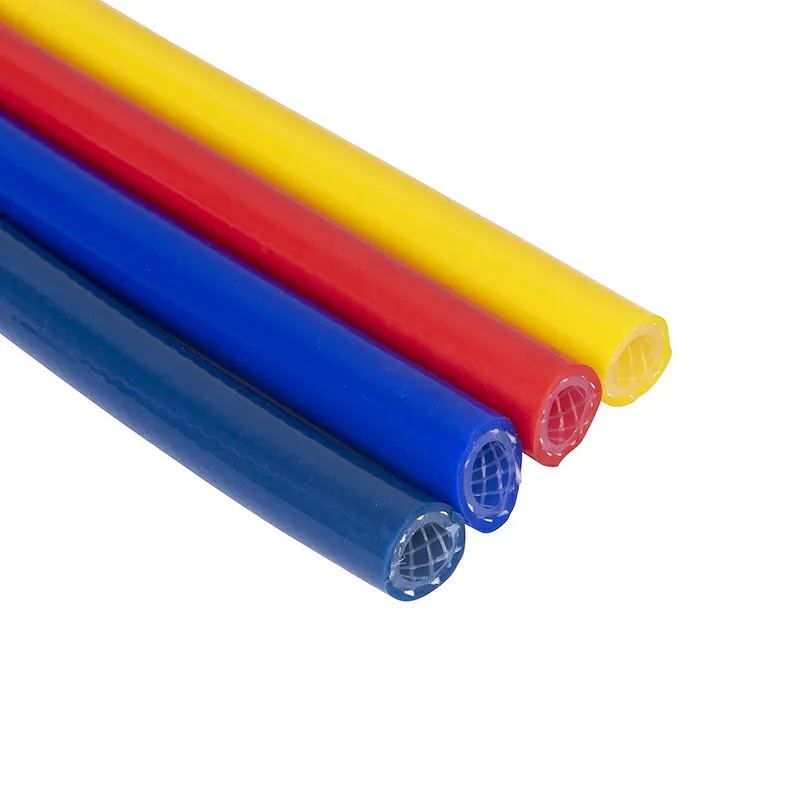

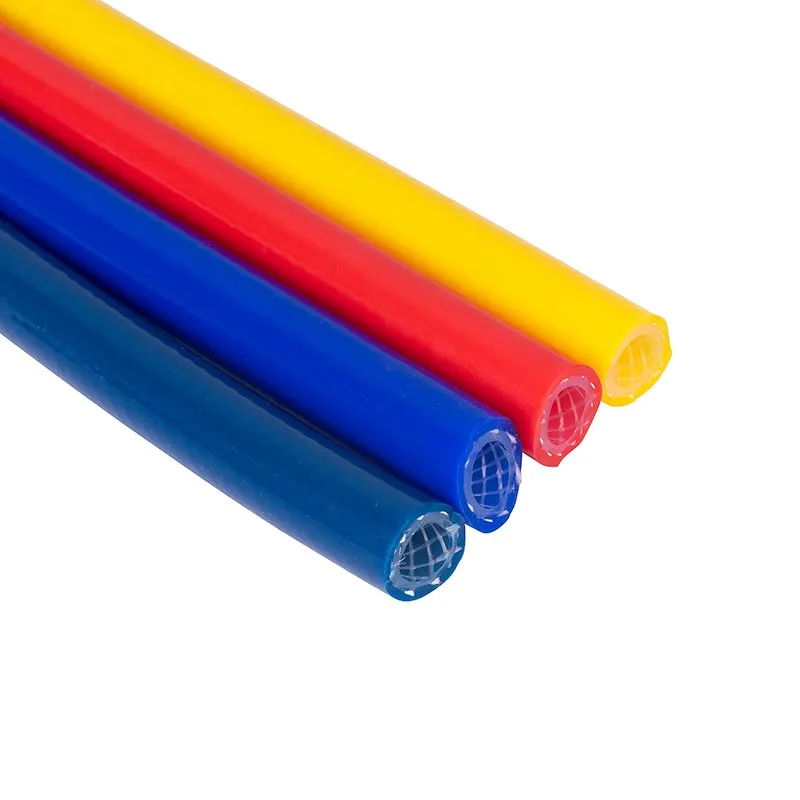

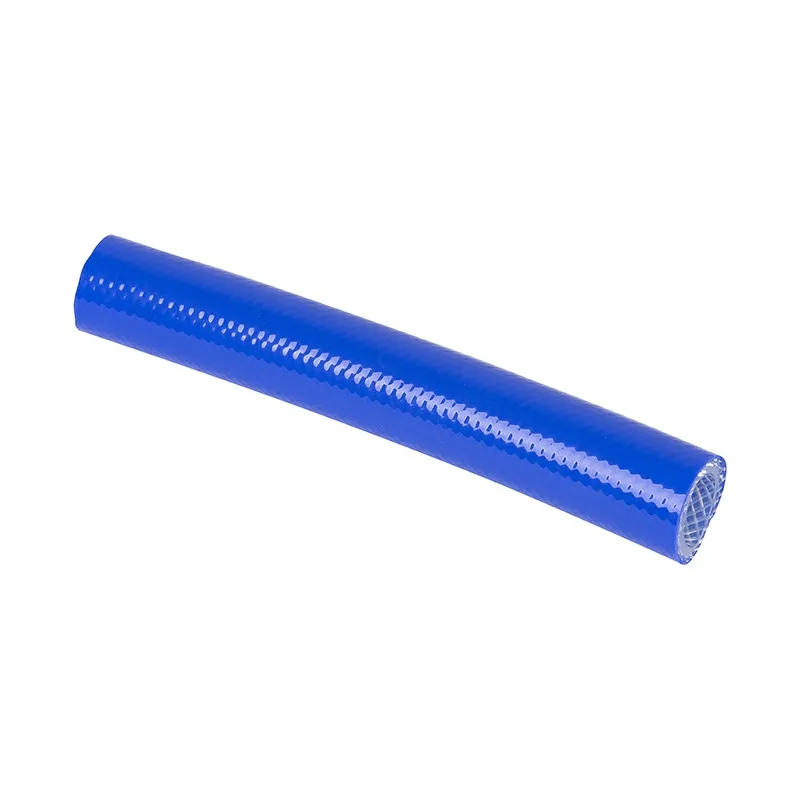

Double-layer braided silicone tubing adopts silicone-reinforced polyester thread and platinum silicone structure. The product pressure is equivalent to 3 times the pressure of similar single-layer braided hose. It has stable chemical properties and is not easy to age. It is suitable for the discharge and suction of various fluids and foods, such as milk, vegetable oil, cola, juice, and grease. It can also be used for food processing and canning workshop equipment. It can be used as a tanker to transport liquid or semi-liquid fluids used in pipeline engineering when products with temperatures up to 150°C are transported.

Double-layer braided silicone tubingTechnical parameters

INNER DIA		WALL THICKNESS		OUTER DIA		WORK PRESSURE		BUSRST PRESSURE		CURVATUFRE		VACUUM		LENGTH
(mm)	(inch)	(mm)	(inch)	(mm)	(inch)	Bar	psi	Bar	psi	mm	(inch)	Bar	psi	M
3.00	1/8	3.00	0.118	9.00	0.354	27.3	395.9	81.9	914	13	0.5	1.00	14.50	100
4.00	1/6	3.00	0.12	10.00	3.94	26.20	379.90	78.60	848.00	25	0.98	1.00	14.50	100
5.00	1/5	4.00	0.157	13.00	0.50	25.00	362.50	75.00	1087.50	28	1.12	1.00	14.50	100
6.35	1/4	4.83	0.19	16.01	0.62	23.80	345.10	71.40	1035.30	33	1.30	1.00	14.50	100
7.92	1/3	5.05	0.20	18.02	0.71	22.80	330.60	68.40	991.80	38	1.50	1.00	14.50	100
9.52	3/8	5.30	0.21	20.12	0.79	21.30	308.85	63.90	926.55	45	1.77	0.93	13.49	100
12.70	1/2	5.15	0.20	23.00	0.91	19.40	281.30	58.20	843.90	55	2.16	0.91	13.19	100
15.80	5/8	5.60	0.22	27.00	1.06	15.50	224.75	46.50	647.25	63	2.50	0.89	12.91	50
19.05	3/4	5.73	0.23	30.51	1.21	13.50	195.75	40.50	587.25	76	3.00	0.79	11.45	50
22.30	7/8	5.50	0.22	33.20	1.31	12.00	174.00	36.00	522.00	102	4.00	0.50	7.25	50
25.40	1	5.80	0.23	37.30	1.47	11.00	159.50	33.00	478.50	125	4.92	0.40	5.80	25
31.75	1-1/4	7.13	0.28	46.00	1.81	10.07	6.07	30.21	438.05	190	7.48	0.15	2.18	25

Advantages of Double-Layer Braided Silicone Tubes

1. High and Low Temperature Resistance;

Operating Temperature Range: -40°C/+180°C; Can reach 220°C for short periods.

2. Food-grade and pharmaceutical-grade

Made from branded silicone raw materials, odorless, tasteless, and non-toxic, meeting FDA food safety requirements.

3. Superior Pressure Resistance

The silicone hose is made of silicone-reinforced polyester thread and platinum silicone structure, providing strong resistance to both positive and negative pressure.

4. Excellent flexibility

Tear resistant, does not deform under stress, does not turn white, flexible, durable, and has a long service life.
