Product Uses

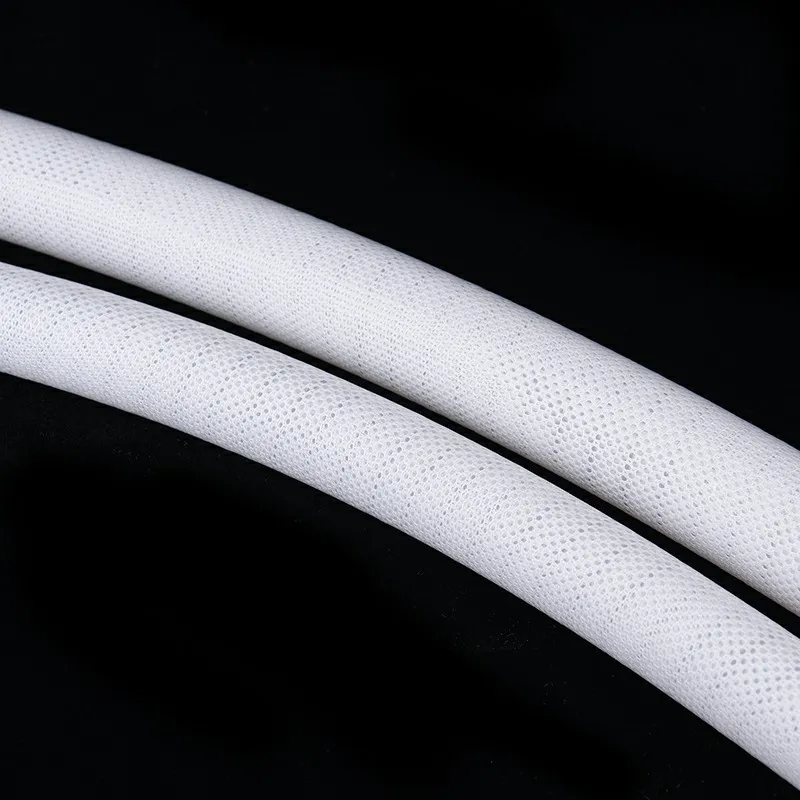

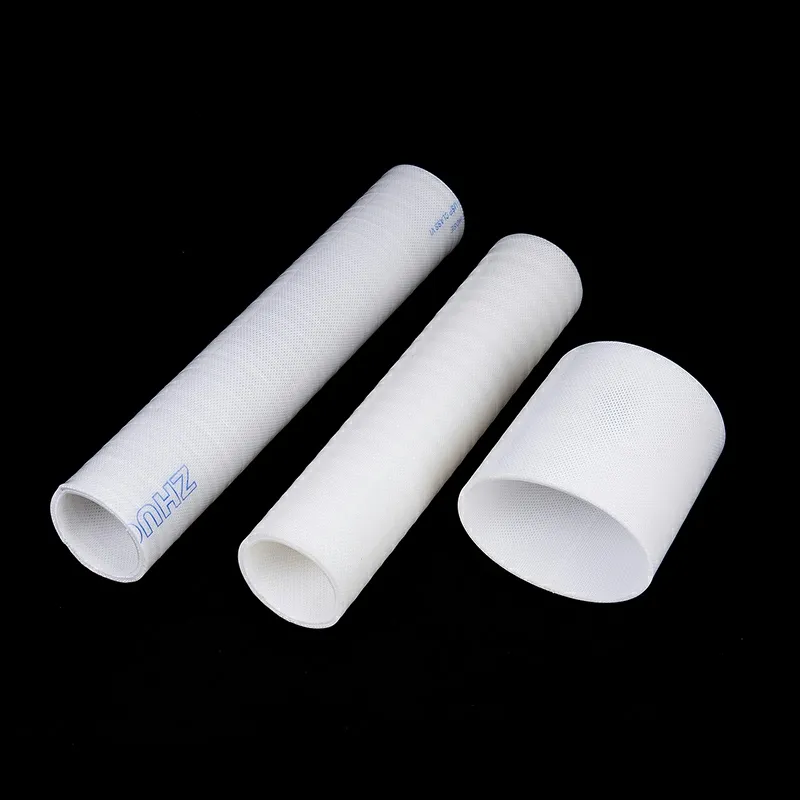

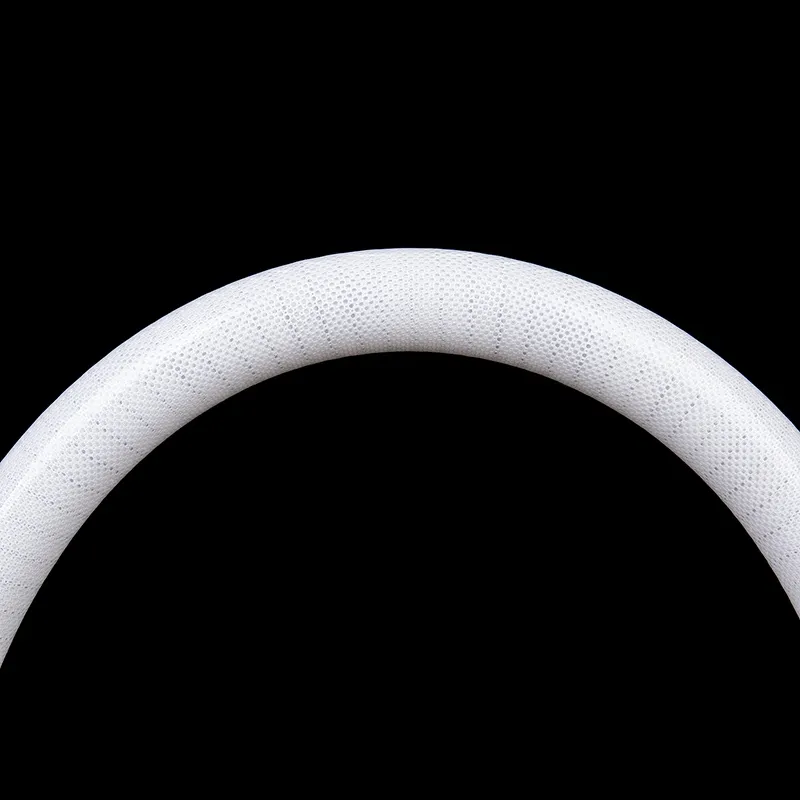

Fabric-reinforced steel wire silicone hose.Highly recommended for transporting or conveying liquids or semi-liquid fluids in the food, cosmetics, chemical, and pharmaceutical industries. This design ensures a balance between strength and weight, making it easy to handle. tubing for food processing; connecting pipes for food machinery; connecting conduits for alcoholic beverages; connecting pipes and conduits for water heaters, rice cookers, etc.; conduits for electrical instruments; connecting pipes and conduits for medical equipment, etc.

Product Information

Product Name	Fabric-reinforced steel wire silicone hose
Material	Food-grade platinum silicone with five layers of woven fabric and double layers of 304 stainless steel wire.
Color	Customization supported
Temperature rangeh	-40C to +220°C
Working Pressuren	Up to 10 bar (varies by size)
Features	Food-grade, odorless, high-temperature resistant, highly flexible, and knot-resistant
Specs	Custom ID/OD & braid density, colors (transparent/white/red/blue etc.)
Packaging	Standard export packing .As buyer's request, nomal carton package,

Product Process

Fabric-reinforced silicone tubing,Four-layer fabric mesh weave,It uses a single layer of 304 stainless steel wire with a spacing of 5 mm.

Installation method of fabric-reinforced steel wire silicone hose

1. Determine Hose Length and Angle: When installing silicone wire hoses, determine important parameters such as the length, angle, and radius of curvature of the pipeline to ensure the hose is not overloaded, overextended, or over-contracted.

2. Cut the Hose: Use scissors or a cutter to cut the silicone wire hose to the required length.

3. Install the Hose: First, push the hose into the pipe fitting or flange, then secure and seal it with clamps.

4. Inspect the Hose: After installation, check the hose connections, cut neatness, lining integrity, and surface smoothness and cleanliness to ensure the hose's quality and safety.

Packaging

1. High-pressure resistant silicone-coated steel wire hose, standard production length is 6 meters (10 meters available upon request), shorter lengths are also available. Other inner diameter requirements can be customized according to customer specifications.

2. Standard packaging is a cardboard box, which can be customized according to customer requirements.
